Hourly Production
30 to 60 yards per hour
Our SLG 108VFRB Vibratory Screener was designed for full sized equipment
Wheel Loaders
Backhoes
Compact Wheel Loaders
Skidsteers
Excavators
Compact Excavators
Only DeSite with its extensive screening experience recognized the need for a Feed Deflection System to direct material flow. Only DeSite SLG screeners offer a deflector to funnel material towards the top of the screen deck to begin the screening process.
Directing material flow to the top off the screen deck produces maximum production and maximum efficiency. The SLG 108 deflector has the ability to open and close as needed to handle oversize material. The 108 feed deflector fits into our quick disconnect lugs.
Quick disconnect mounting allows for the feeder to be easily removed turning the SLG 108 into a vibrating grizzly screen deck to screen materials like bulky construction demolition debris.

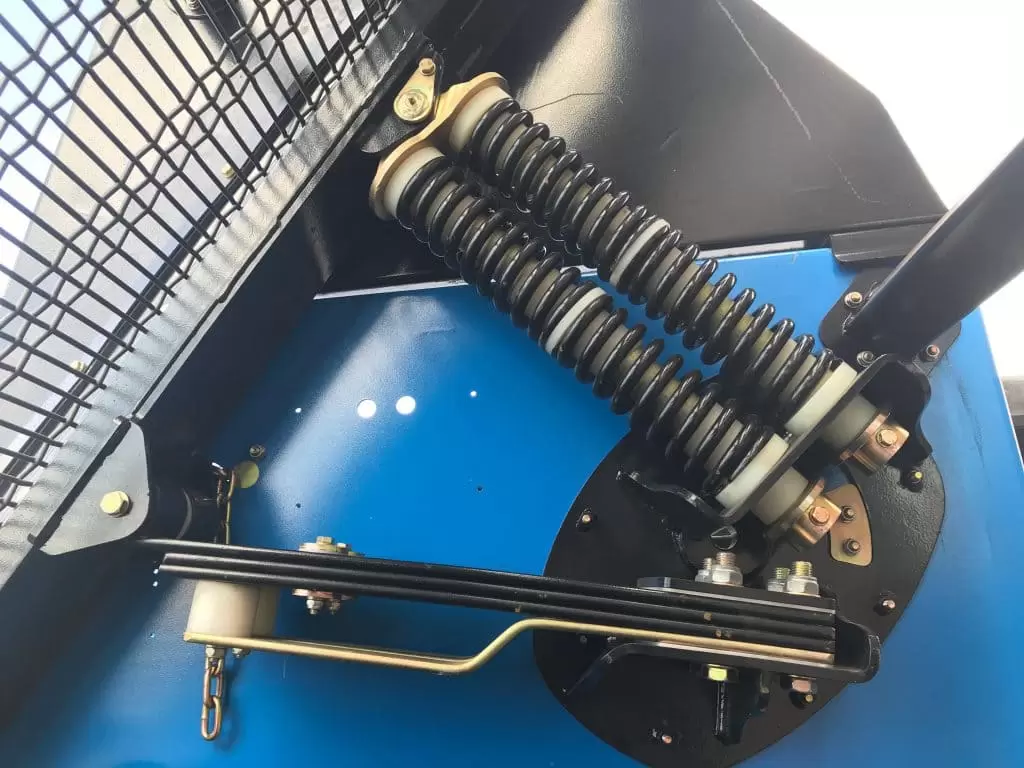

An operator’s ability to manipulate screen deck slope while screening increases efficiency and will produce more production each hour. The SLG 108VFRB can adjust to varying positions for varying materials with varying moisture levels. The 108 performs well in all soil conditions: wet, dry, sandy, rocky, and even frozen soil.
To slow material flow, the operator needs only to flatten deck slope with the bucket while feeding the screener. Leaving the screener at a steeper slope allows material to travel faster for screening high moisture materials. You will only find this high-efficiency feature on a DeSite screening machine.
Our suspension system is basically maintenance free with only two grease points that need servicing each shift. Using leaf springs, Z springs, and UHMW bushing to separate the suspension tubes from the coils no lubrication is needed. Less time servicing means more time screening, more production and more profit.

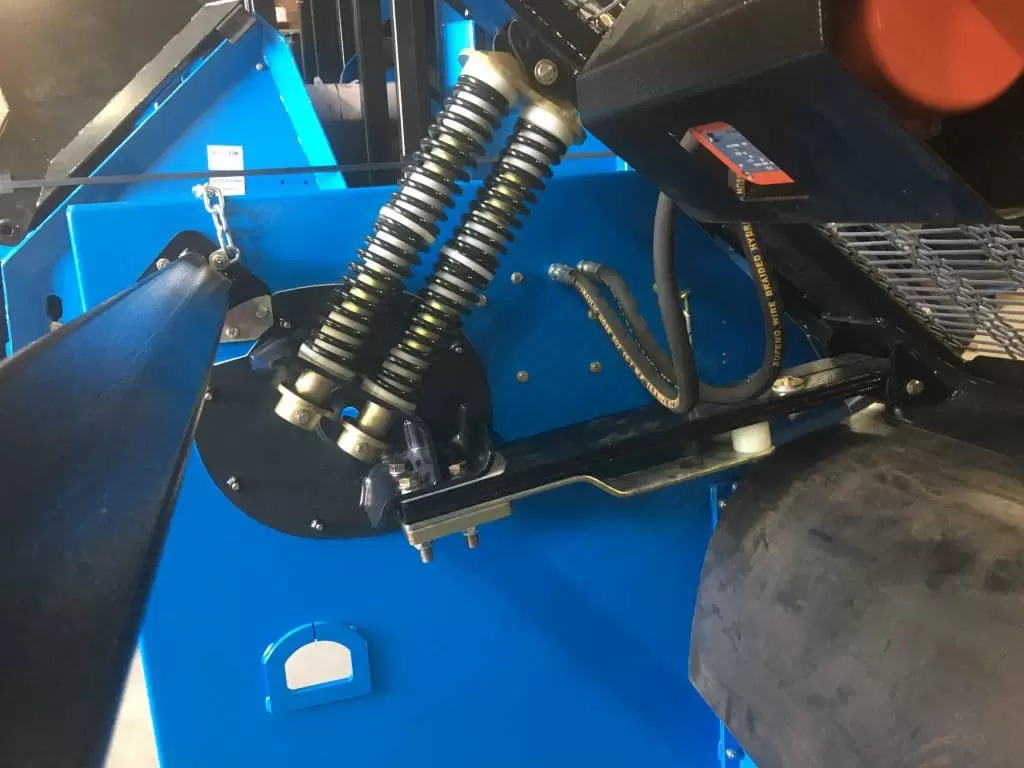

Our Cantilevered Coil Over Spring Suspension System gives the operator the freedom to choose the deck slope that best suits the material being screened. Our simple and rugged suspension designed to cantilever which mean that when the top of the screen deck is pushed down the bottom works in the opposite direction.
The SLG 108VFRB comes fitted with dual eccentric vibratory pack. The motors turn at 3600rpm and each produce about 760lbs of force as they spin. Inside the starter box are two starting capacitors that store energy to initiate motor start up. When at operating rpm each vibratory pack only draw about 5 amps. Our DeSite eccentric vibratory packs are oil ring sealed to keep dust and moisture out. Electric components is encased in rubber to absorb vibration transferred from the eccentrics.
The SLG 108VF screener is easily moved around onsite using only the bucket of your machine with our SLG 108 Bucket Transport Lugs. Keeping your machine as close as possible to the material being screened reduces cycle times to the screener which means more buckets per hour and higher hourly output.
With our fork and bucket lug transport system there is no need for wheels, axles, hitches and wiring to maintain.
The galvanized finish makes the riser corrosion resistant. Often the riser sits covered in soil and rock when the screener is not in use so the galvanized finish protects the metal from these elements.
When the screener is up on the riser box the storage capacity for product under the screener raiser to about 5 yards of material on each side of the screener.
The Riser Box weighs in at 1200lbs
Please allow up to 24 business hours for responses as we are in the height of our busy season. Duplicate emails, phone calls and texts are not required as reminders – we will do our best to get back to you as quickly as possible. Thank you for your patience and for your interest in our products.
The ability to quickly change out your mesh size allows you to offer varying sizes of agreegate and varying qualities of topsoil to match your customers needs. Our side tensioning crowned screen decks provide easy access to the mesh clamp bolts making it easy to change to an alternate mesh size to make other products. We offer small opening meshes that can produce a 1/16 product all the way up to a 4 inch square mesh for heavy rock.
We offer a wide range of mesh that are quick and easily changed.The ability to install large and small high quality mesh makes DeSite SLG Screeners a time saver and money maker. We offer both square and elongated mesh pattern in a double lock crimp weave. Our double lock weave puts two crimps in each wire as they intersect, This creates a strong weave and a stronger, more stable mesh.
Our elongated pattern mesh is what we call a triple chute weave where a group of three wires intersect the main with wires. A space of four inches has full unobstructed opening before the next three wires intersect the mesh again. Our elongated pattern meshes are designed to handle higher moisture material when screening is more challenging. Hourly production are always considerably higher when elongated pattern mesh in in use.
| Mesh Size | Pattern | Product Size |
|---|---|---|
| 5/32" x 5/32" | Square | 1/16" |
| 1/4" x 1/4" | Square | 1/8" |
| 3/8" x 3/8" | Square | 1/4" |
| 1/2" x 1/2" | Square | 3/8" |
| 1" x 1" | Square | 3/4" |
| 2" x 2" | Square | 1-1/2" |
| 3" x 3" | Square | 2" |
| 4" x 4" | Square | 3" |
| Mesh Size | Pattern | Product Size |
|---|---|---|
| 3/8" x 4" | Elongated | 1/4" to 5/16" |
| 1/2" x 4" | Elongated | 3/8" to 7/16" |
| 3/4" x 4" | Elongated | 1/2" to 9/16" |
| 1" x 4" | Elongated | 3/4" to 7/8" |
Topsoil is in demand and profitable. Depending upon the customer and their needs some want it very fine while other are more price conscious and want commercial grade topsoil
| Top Dressing Mesh Recommendation | |
|---|---|
| Mesh Size | Product Size |
| 1/8 x 4” elongated mesh | 1/16 minus product |
| 1/4 x 1/4 square mesh | 1/8 minus product |
| 1/4 x 4” elongated mesh | 1/8 minus product |
| 3/8 x 3/8 square mesh | 1/4 minus product |
| 3/8 x 4” elongated mesh | 1/4 minus product |
| Fine Topsoil Mesh Recommendation | |
|---|---|
| Mesh Size | Product Size |
| 1/4 x 4” elongated mesh | 1/8 minus product |
| 3/8 x 4” elongated mesh | 1/4 minus product |
| 1/2 x 4” elongated mesh | 3/8 minus product |
Compost and either be a top dressing product used fertilizer / soil builder or can be used to create a triple mix with sand and topsoil
| Mesh Size | Product Size |
|---|---|
| 3/8 x 3/8 square mesh | 1/4 minus product |
| 3/8 x 4” elongated mesh | 1/4 minus product |
| 1/2 x 1/2 square mesh | 3/8 minus product |
| 3/4 x 4” elongated mesh | 1/2 minus product |
| 1” x 4” elongated mesh | 3/4 minus product |
| 1” x 1” square mesh | 3/4 minus product |
Wood mulch is a light product that travels over the screen deck differently that a soil or aggregate product. It is recommended to run a bit bigger mesh. Often people will screen out the fines and mix it into the topsoil for slow release decomposition. It is a great way to recycle the wood fines.
| Mesh Size | Product Size |
|---|---|
| 1/2 x 1/2 square mesh | 1/4 minus product |
| 3/4 x 4” elongated mesh | 1/2 minus product |
| 1” x 4” elongated mesh | 3/4 minus product |
| 1” x 1” square mesh | 1/2 minus product |
| 2” x 2” square mesh | 1-1/4 minus product |
| 3” x 3” square mesh | 2” minus product |
| 4” x 4” square mesh | 3” minus product |
This is the mixture of topsoil / sand / compost to create a product that normally commands a premium price.
| Mesh Size | Product Size |
|---|---|
| 1/2 x 1/2 square mesh | 1/4 minus product |
| 3/4 x 4” elongated mesh | 1/2 minus product |
| 1” x 4” elongated mesh | 3/4 minus product |
| 1” x 1” square mesh | 1/2 minus product |
| 2” x 2” square mesh | 1-1/4 minus product |
| 3” x 3” square mesh | 2” minus product |
| 4” x 4” square mesh | 3” minus product |
Often used in play grounds or for decoration. Pea stone usual commands a premium price asmost aggregate gets crushed and too sharp for pea stone
| Mesh Size | Product Size |
|---|---|
| 3/8 x 3/8 square mesh | 1/4 minus product |
| 1/2 x 1/2 square mesh | 3/8 minus product |
| 1/2 x 4” elongated mesh | 3/8 minus product |
| 1” x 1” square mesh | 3/4 minus product |
In some regions water is restricted for yard use so decorative rock is the manageable and cost effective solution.
| Mesh Size | Product Size |
|---|---|
| 3/4 x 4” elongated mesh | 5/8 minus product |
| 1” x 1” square mesh | 3/4 minus product |
| 1-1/4 x 1-1/4 square mesh | 7/8 minus product |
| 1-1/2 x 1-1/2 square mesh | 1-1/8 minus product |
| 2” x 2” square mesh | 1-1/2 minus product |
| 3” x 3” square mesh | 2-1/4 minus product |
| 4” x 4” square mesh | 3-1/4 minus product |
Finer road gravel works great for capping roadways
| Mesh Size | Product Size |
|---|---|
| 3/4 x 4” elongated mesh | 5/8 minus product |
| 1” x 1” square mesh | 3/4 minus product |
| 1-1/4 x 1-1/4 square mesh | 7/8 minus product |
| 1-1/2 x 1-1/2 square mesh | 1-1/8 minus product |
Many regions still use stone in their septic fields for the evaporation process
| Mesh Size | Product Size |
|---|---|
| 1/2 x 1/2 square mesh | 3/8 minus product |
| 3/4 x 4” elongated mesh | 5/8 minus product |
| 1” x 1” square mesh | 3/4 minus product |
| 1-1/4 x 1-1/4 square mesh | 7/8 minus product |
The ability to separate out the smaller gravel make for a much better and more stable road base. I also then allows for the fines to be spread on top of the base coarse for a gradable surface.
| Mesh Size | Product Size |
|---|---|
| 1-1/2 x 1-1/2 square mesh | 1-1/8 minus product |
| 2” x 2” square mesh | 1-1/2 minus product |
| 3” x 3” square mesh | 2-1/4 minus product |
| 4” x 4” square mesh | 3-1/4 minus product |
The screening and recycling of ground asphalt has become popular with the material coming in off repaving project. Once screened many people use the fine material on driveways and the bigger material on roads and lots with heavier traffic.
| Mesh Size | Product Size |
|---|---|
| 3/4 x 4” elongated mesh | 5/8 minus product |
| 1” x 1” square mesh | 3/4 minus product |
| 1-1/4 x 1-1/4 square mesh | 7/8 minus product |
| 1-1/2 x 1-1/2 square mesh | 1-1/8 minus product |
| 2” x 2” square mesh | 1-1/2 minus product |
Screened crushed concrete makes great base material when building roads
| Mesh Size | Product Size |
|---|---|
| 3/4 x 4” elongated mesh | 5/8 minus product |
| 1” x 1” square mesh | 3/4 minus product |
| 1-1/4 x 1-1/4 square mesh | 7/8 minus product |
| 1-1/2 x 1-1/2 square mesh | 1-1/8 minus product |
| 2” x 2” square mesh | 1-1/2 minus product |
| 3” x 3” square mesh | 2-1/4 minus product |
| 4” x 4” square mesh | 3-1/4 minus product |
Water flow can do a lot of damage through erosion. Erosion control rock works great to stabilize slopes or around culverts to reduce erosion during heavy rains
| Mesh Size | Product Size |
|---|---|
| 1/2 x 4” elongated mesh | 3/8 minus product |
| 3/4 x 4” elongated mesh | 1/2 minus product |
| 1” x 4” elongated mesh | 3/4 minus product |
| 1” x 1” square mesh | 3/4 minus product |
| 1-1/4 x 1-1/4 square mesh | 7/8 minus product |
| 1-1/2 x 1-1/2 square mesh | 1-1/8 minus product |
| MACHINE DIMENSIONS | |
|---|---|
| Machine Width | 126 inches |
| Machine Height | 122 inches |
| Machine Depth | 72 inches |
| SCREEN DECK | |
| Screen Deck Width | 120 inches |
| Screen Deck Length | 72 inches |
| Screen Deck Surface area | 58 sq/ft |
| Screen Deck Tilt Angle | 45 to 30 Degrees |
| VIBRATORY SYSTEM | |
| Vibratory Style System | Dual Eccentric Armature |
| Eccentric Rotation Speed | 3600 rpm |
| Amperage Draw | 10 each on start up with 5 Amps Amp draw per motor at 3600rpm |
| Eccentric Force rotation | 760 lbs per/revolution |
| ELECTRICAL POWER SUPPLY | |
| North America | 110 Volt ( 60 Hertz ) |
| Europe | 220 Volt ( 50 Hertz ) |
| South America | 110 Volt ( 60 Hertz ) |
| WEIGHT | |
| Total Weight with riser box | 5500 lbs |
| Total Weight without riser box | 4300 lbs |
